Aluminium-alloy IP65 single point load cell. Colourless anodized. Suitable for mobile weighing systems, floor scales, belt scales, hopper and tank scales, etc. OIML approved Accuracy Class C3

Add to Compare Added to Compare

Compare

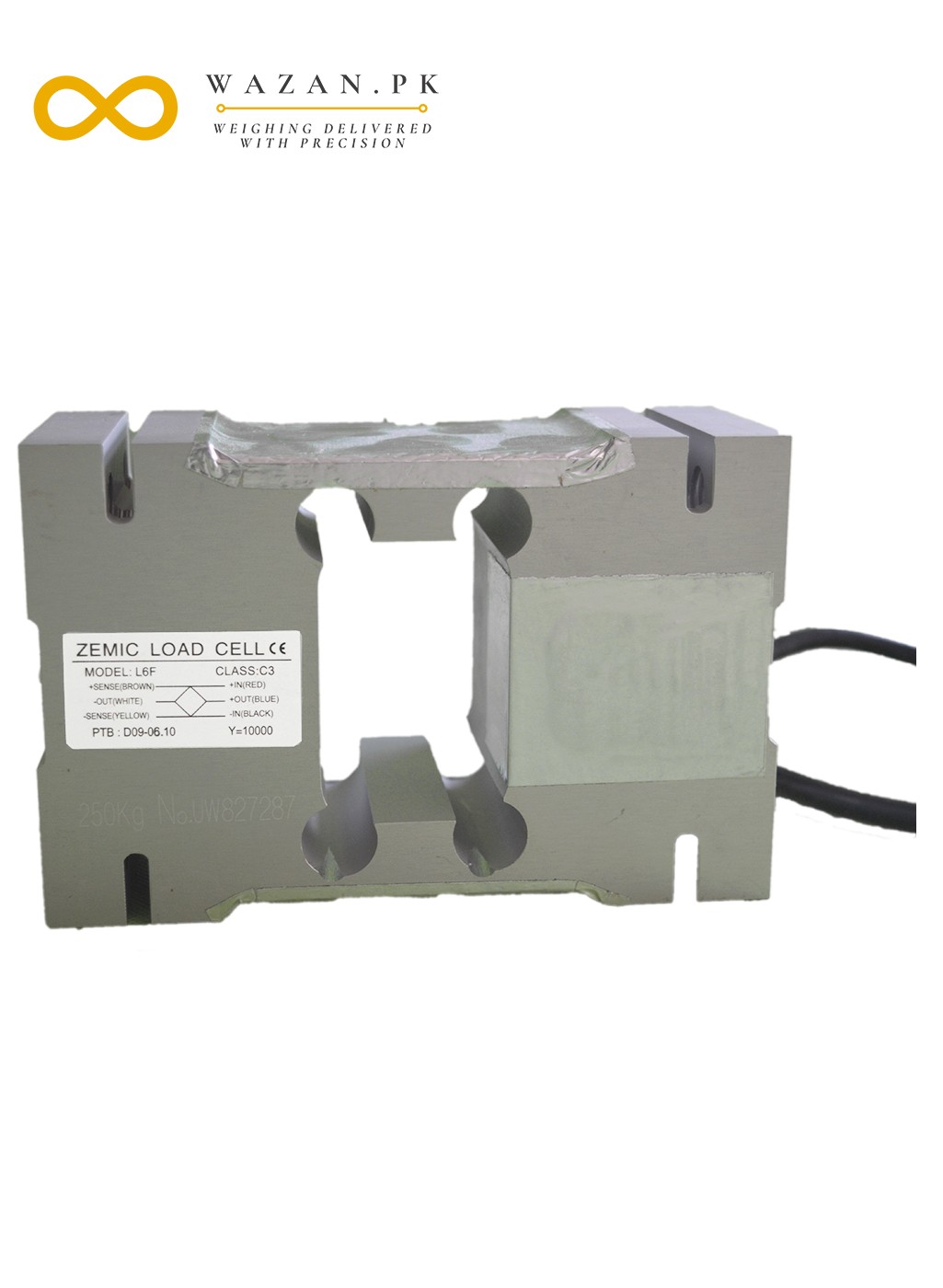

L6F Zemic Single Point Load Cell

Brand: Zemic, China

Aluminium-alloy IP65 single point load cell.
Colourless anodized.
Suitable for mobile weighing systems, floor scales, belt scales, hopper and tank scales, etc.
OIML approved
Accuracy Class C3

Hurry up! Sale end in:

Available Capacities

250Kgs 500kgs 2t

Clear

... people are viewing this right now

Compare

Guaranteed Safe Checkout Trust

View Product Information

L6F Zemic load cell is one of the best single point load cells with four screws on the left and right sides. It is used for various commercial scales with capacities of 250 to 2000 kilograms. L6F load cell is usually suitable for large scales due to its strong and sturdy structure.
The L6F load cell is a single point load cell that has been edge-balanced by the manufacturer and is defined in the accuracy class C3 and does not have any weight difference on the sides in the maximum platform dimensions of 120×120 centimeters. This load cell is made of anodized aluminum alloy and the connection point of strain gauges is filled with a special and strong resin and has an IP65 protection standard, which makes it suitable for use in industrial environments.

L6F Datasheet

0.00

0 reviews

5		0
4		0
3		0
2		0
1		0

Thank you! Your review has been submitted

Be the first to review “L6F Zemic Single Point Load Cell”

Reviews

There are no reviews yet.

TECHNICAL SPECIFICATION

Accuracy Class		OIML R60 C3
Output Sensitivity ( = FS )	mV/V	2.0 ± 0.2
Maximum Capacity ( Emax )	kg	50, 100, 150, 200, 250, 500, 750, 1000, 2000
Max. Number of Load Cell Intervals	nLC	3000
Ratio of min. LC Verification Interval	Y = Emax / vmin	7000
Combined Error	%FS	≤± 0.02
Creep Error (30 minutes)	%FS	≤± 0.0167
Temperature Effect on Zero (ZTC)	%FS/10°C	≤± 0.02
Temperature Effect on Sensitivity (STC)	%FS/10°C	≤± 0.0175
Zero Balance	%FS	≤± 2.0
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Maximum Deflection	mm	[50kg: ~0.21] [250kg: ~0.34] [2t: 0.4 ~ 0.5]
Eccentric Loading Error	%Ld/cm	± 0.002
Excitation, Recommended Voltage	V	5 ~ 12
Input Resistance	Ω	406 ± 6
Output Resistance	Ω	350 ± 3
Insulation Resistance (50V)	MΩ	≥5000
Compensated Temperature	°C	-10 ~ + 40
Operating Temperature	°C	35 ~ + 65
Storage Temperature	°C	-40 ~ + 70
Load Cell Weight	kg	[50kg - 200kg: ~1.1] [250kg - 500kg: 1.8] [750kg - 2t: 3.7]
Element Material		Aluminium
Ingress Protection (acc. to EN 60529)		IP65
Recommended Torque on Fixation Bolts	Nm	M12: 100 M16: 160
