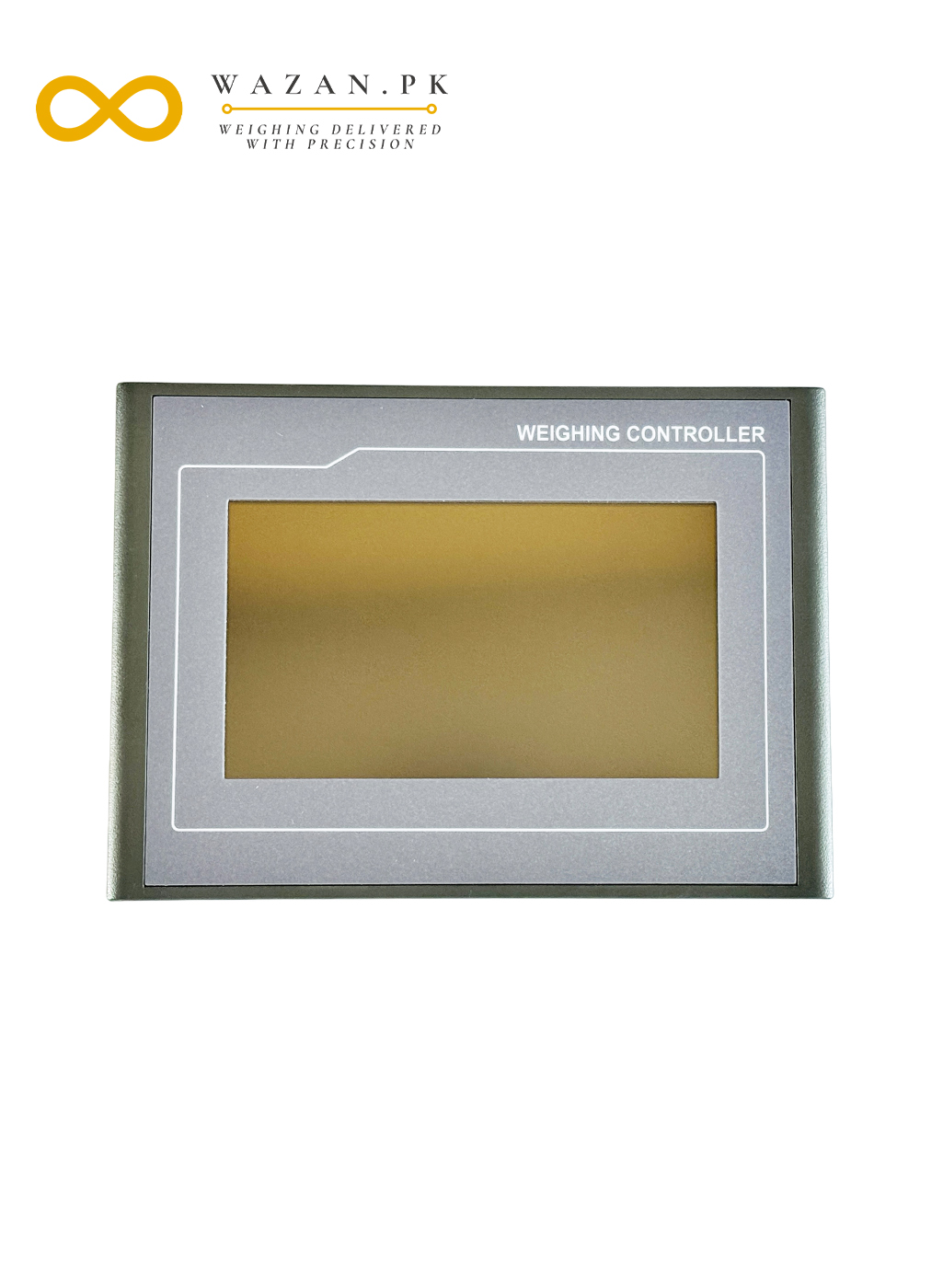

BST106-M10[BH] Weighing Controller
- 7” TFT Touch Panel
- Auto Zero Tracking
- Accuracy Grade: III
- Can Connect Up-to 16 Analog Load Cells
- Delivery & Return
Delivery Policy
POLICIES CAN BE CHANGED AT ANY TIME WITHOUT PRIOR NOTICE. At Wazan.pk, we strive to provide you with a seamless delivery experience. Please note that all delivery charges will be bear by the customer. We understand the importance of flexibility, which is why we offer you the choice of selecting your preferred Courier/Cargo service for delivery. In the absence of your preferred choice, we will ensure to select the best possible alternative for efficient delivery. It’s important to note that delivery timing will be based on the Courier/Cargo service chosen by you. In the event of refunds or exchanges, please be advised that any delivery charges incurred will be the responsibility of the customer. We are committed to delivering your orders in a timely and reliable manner, ensuring your satisfaction with every purchase, all at affordable prices.POLICIES CAN BE CHANGED AT ANY TIME WITHOUT PRIOR NOTICE. At Wazan.pk, we strive to ensure your complete satisfaction with every purchase. If you’re not satisfied with your order for any reason, we’re here to help. - Ask a Question
7” TFT Touch Panel
Auto Zero Tracking
Accuracy Grade: III
Can Connect Up-to 16 Analog Load Cells
| 5 |
|
0 |
| 4 |
|
0 |
| 3 |
|
0 |
| 2 |
|
0 |
| 1 |
|
0 |
TECHNICAL SPECIFICATION
Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.
LAN: Optional Ethernet.
Outline Size [W×H×D]
7”: 226.5 × 163 × 36 mm.
10.2”: 274 × 193 × 40 mm.
Panel Cut-out Size [W×H]
7”: 215 × 152 mm.
10.2”: 261 × 180 mm.
Operating Temperature: -25℃~+45℃.
Protection Level of Front Panel: IP65.
Accuracy Grade: III.
Verification Accuracy: 0.02%.
Static Weighing Accuracy: 0.2%~0.5%.
Packing Accuracy: 0.2%~0.5%.
