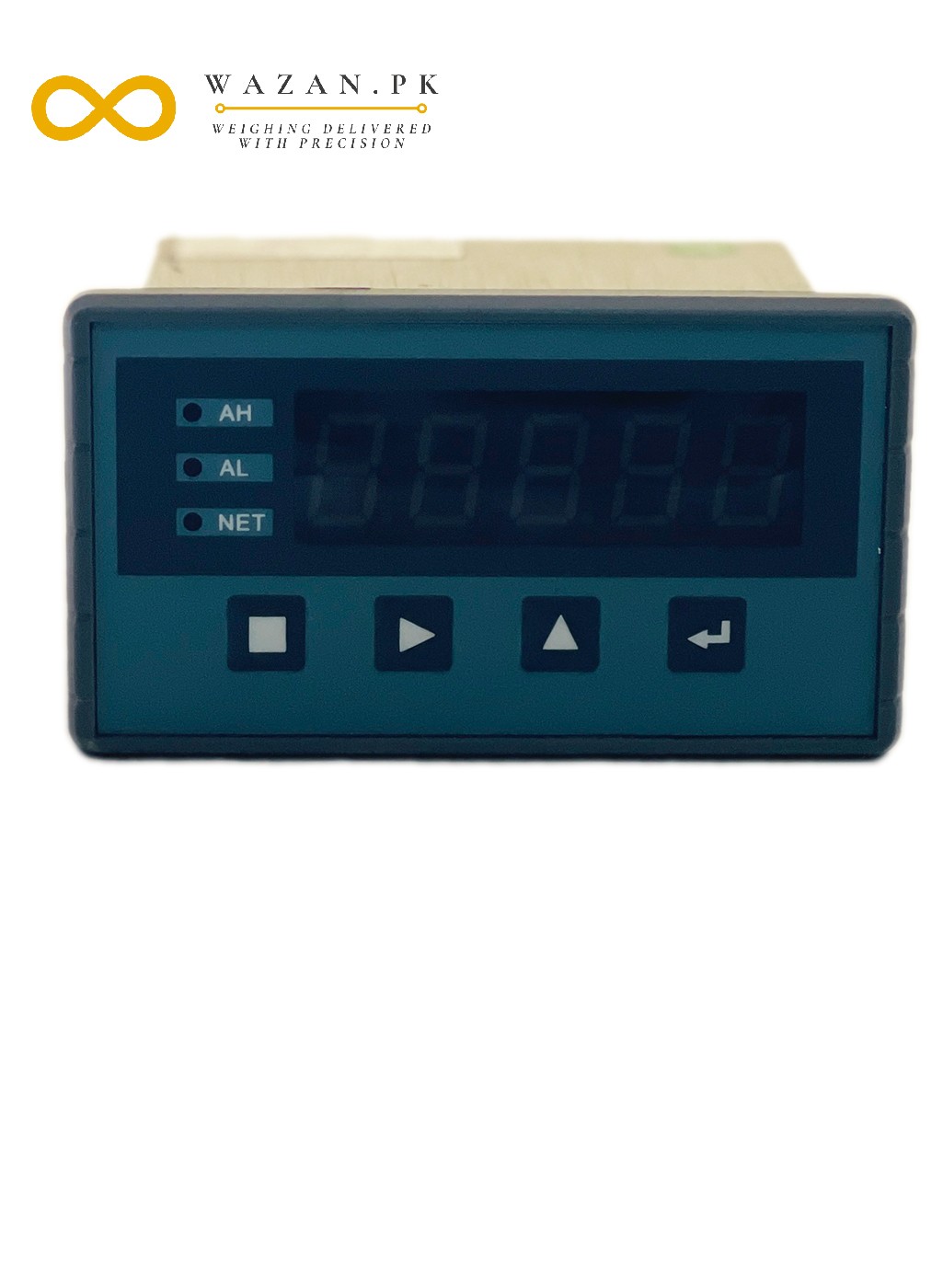

BST106-B60S[L] Weighing Controller
EMC design with high anti-jam for industrial environment. DC24V power input with reverse polarity protection. 32-bit ARM CPU with 48MHz clock & high arithmetic speed. 6+8 Red LED digital tubes for English&digit display. 24-bit ∑-△ADC with internal resolution 1/1,000,000. High sampling frequency 400Hz. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response. Auto Zero Tracking. Fall Value Auto Correction. Auto Re-feed for Negative Deviation Alarm. Target Batch Count Control. Auto Pause for Gross Weight Upper Limit & Deviation Alarm. 'Manual Pause' Operation. Batching Process Power-off Protection. 2-speed[high/low] feeding control by DOs or AOs. Definable AO/COM[Communication Port]. Recipe Number: 1. RS232 and RS485 communication ports for connecting Host IPC/PLC and LED Remote Display.
Add to Compare Added to Compare
Compare

BST106-B60S[L] Weighing Controller

Brand: Supmeter, China
  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  • 6+8 Red LED digital tubes for English&digit display.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 400Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count Control.
  • Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  • ‘Manual Pause’ Operation.
  • Batching Process Power-off Protection.
  • 2-speed[high/low] feeding control by DOs or AOs.
  • Definable AO/COM[Communication Port].
  • Recipe Number: 1.
  • RS232 and RS485 communication ports for connecting Host IPC/PLC and LED Remote Display.
  •  Delivery & Return

    Delivery Policy

    POLICIES CAN BE CHANGED AT ANY TIME WITHOUT PRIOR NOTICE. At Wazan.pk, we strive to provide you with a seamless delivery experience. Please note that all delivery charges will be bear by the customer. We understand the importance of flexibility, which is why we offer you the choice of selecting your preferred Courier/Cargo service for delivery. In the absence of your preferred choice, we will ensure to select the best possible alternative for efficient delivery. It’s important to note that delivery timing will be based on the Courier/Cargo service chosen by you. In the event of refunds or exchanges, please be advised that any delivery charges incurred will be the responsibility of the customer. We are committed to delivering your orders in a timely and reliable manner, ensuring your satisfaction with every purchase, all at affordable prices.

    Return and Exchange Policy

    POLICIES CAN BE CHANGED AT ANY TIME WITHOUT PRIOR NOTICE. At Wazan.pk, we strive to ensure your complete satisfaction with every purchase. If you’re not satisfied with your order for any reason, we’re here to help.
  •  Ask a Question
  ... people are viewing this right now
Compare
  Share
Guaranteed Safe CheckoutTrust
View Product Information

SUPMETER High Accuracy DC24V LED Loadcell Indicator, 5 Digital Load cell Controller BST106-B60S[L]. With the multitasking mode, the processes of weighing, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.
Weight/Force Display, Peak Value Detection / Display Holding Setpoint DO Output, AO/Digit Transmission

BST-106 B60S[L] Operational Manual

0.00
0 reviews
5
0
4
0
3
0
2
0
1
0
Thank you! Your review has been submitted
Be the first to review “BST106-B60S[L] Weighing Controller”

Your email address will not be published. Required fields are marked *

This field is required.

This field is required.

This field is required.

Be the first to review “BST106-B60S[L] Weighing Controller”

Reviews

There are no reviews yet.

TECHNICAL SPECIFICATION

Model NO. BST106-B60S[L]
Measure Method
 Automatic
Shell Material
 Stainless Steel
Application
 Heavy Industrial
Certification
 CE Customized Non-Customized
COM1
 RS232 COM2 RS485
Ao
 4-20mA, 0-10V Power Supply DC24V
Product Name
 Weighing Controller Transport Package 1PCS/Box, 44PCS/Carton
Specification
 107*60*100mm Trademark Supmeter
Origin
 China HS Code 8537109090
Production Capacity
 5000PCS/Day
  • Display
  • 5 Red LED digital tubes for English character and digit display.
  • Weight Display Range: -9,999~+99,999.
  • Scale Capacity: Setting Range 1~99,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/50,000.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Digital Communication Interface
  • COM1: RS232.
  • COM2: RS485.
  • Connectable: Host IPC/PLC and LED Remote Display.
  • Operating Specification
  • Operating Voltage 1: DC24V±20%.
  • Operating Voltage 2: AC85~264V, 50/60Hz.
  • Max. Power Consumption: 5W.
  • Outline Size: 107×60×100mm [W×H×D].
  • Panel Cut-out Size: 94×47mm [W×H].
  • Operating Temperature: -25ºC to +45ºC.
  • Storage Temperature: -30ºC to +60ºC.
  • Relative Humidity: Max. 85%RH.
  • Protection Level of Front Panel: IP65.
  • Weight: Approx. 0.3kg.
SKU: WZ-BST-106-45 Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
