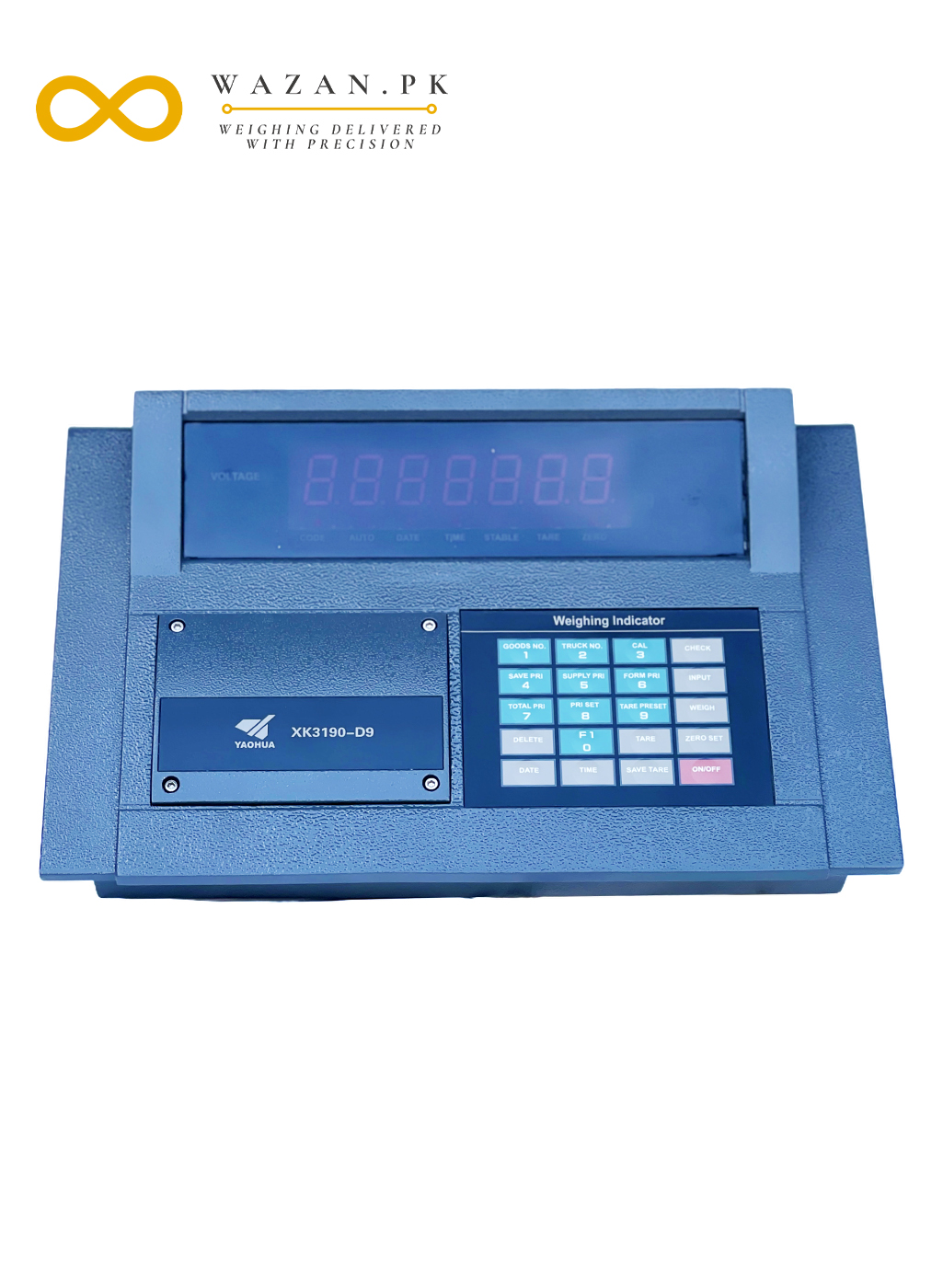

D9 (XK-3190) Weighing Indicator
Brand: Yaohua, China
- Material: Painted Steel
- LED Display
- RS-232C Communication Interface
- Attractive Design
... people are viewing this right now
Compare
Material: Painted Steel
LED Display
RS-232C Communication Interface
Attractive Design
TECHNICAL SPECIFICATION
| 1. Model | XK3190-D9 Weighing Indicator |
| 2.Accuracy | Level III, n=3000 |
| 3. Analog part | |
| AD conversion: | ÿ-ÿ conversion method, maximum conversion code: 16 million/time |
| Conversion speed Input signal range: | 200 times/second |
| Non-linearity: | -30 ~ 30mV |
| Full scale Temperature | ÿ0.003%FS |
| coefficient: Zero point | 5PPM/ÿ |
| temperature drift | 0.05 uV/ÿ |
| Bridge power supply | DC 5V, 120mA, can connect 8 350ÿ sensors or 16 700ÿ sensors |
| Maximum sensitivity Sensor | 0.5uV/d |
| Connection method | adopts 6-wire type, long-line automatic compensation |
| 4. Display division value | 7-digit LED, 0.8-inch character height, 7 status indicators, 1 undervoltage indicator 1/2/5/10/20/50/100 optional |
| 5. Clock accuracy | Can display year/month/day, hour/minute/second, and automatically calculate leap year and leap month. |
| 6. Keyboard | + 5s/24h, not affected by power outages. |
| Number keys | 0ÿ9 20 |
| Function keys | (10 of which can be used in combination with numeric keys) |
| Key material | Touch membrane switch |
| 7. Large screen display interface | Serial output mode |
| Transmission mode | (1) 20mA current loop (constant current source output) |
| (2) RS232 11 | |
| Transmitted data format | bit |
| Baud rate | 600 |
| Transmission distance | (1) 20mA current loop: ÿ2000 meters |
| (2) RS232: ÿ30 m | |
| 8. Serial communication interface | |
| Transmission mode | RS232C/RS422 (optional) |
| Baud rate | Baud rate selectable: 600/1200/2400/4800/9600 10 bits: 1 start bit, 8 data bits |
| Transmission data format | (ASCÿ encoding), 1 stop bit |
| Transmission distance | RS232: ÿ30 m |
| RS422: ÿ1200 m | |
| 9. Printing interface | Standard parallel output interface |
| (1) Can be equipped with TpuP16 micro printer, TM800, KX-P1121, KX-P1131, LQ-1600K, LQ-300K wide line printer | |
| (2) D9P comes with a micro printer M150-ÿ | |
| 10. Data storage | Can store 1500 vehicle numbers and tare weights, 201 cargo numbers, 1501 sets of weighing records |
| 11. Power supply | |
| AC power supply | AC 220v (-15%~+10%); 50Hz (-2%~+2%) Powered by FM660A |
| DC power supply | (6V/6AH) battery (built-in) |
| 12. Operating environment | |
| Operating temperature | 0ÿ -- 40ÿ ÿ25ÿ --55ÿ |
| Storage temperature | ÿ85%RH |
| Relative humidity Warm-up time | 15 minutes |
| 13. External dimensions Weight | 316×190×205 (mm) Approx. 3.7 kg |
