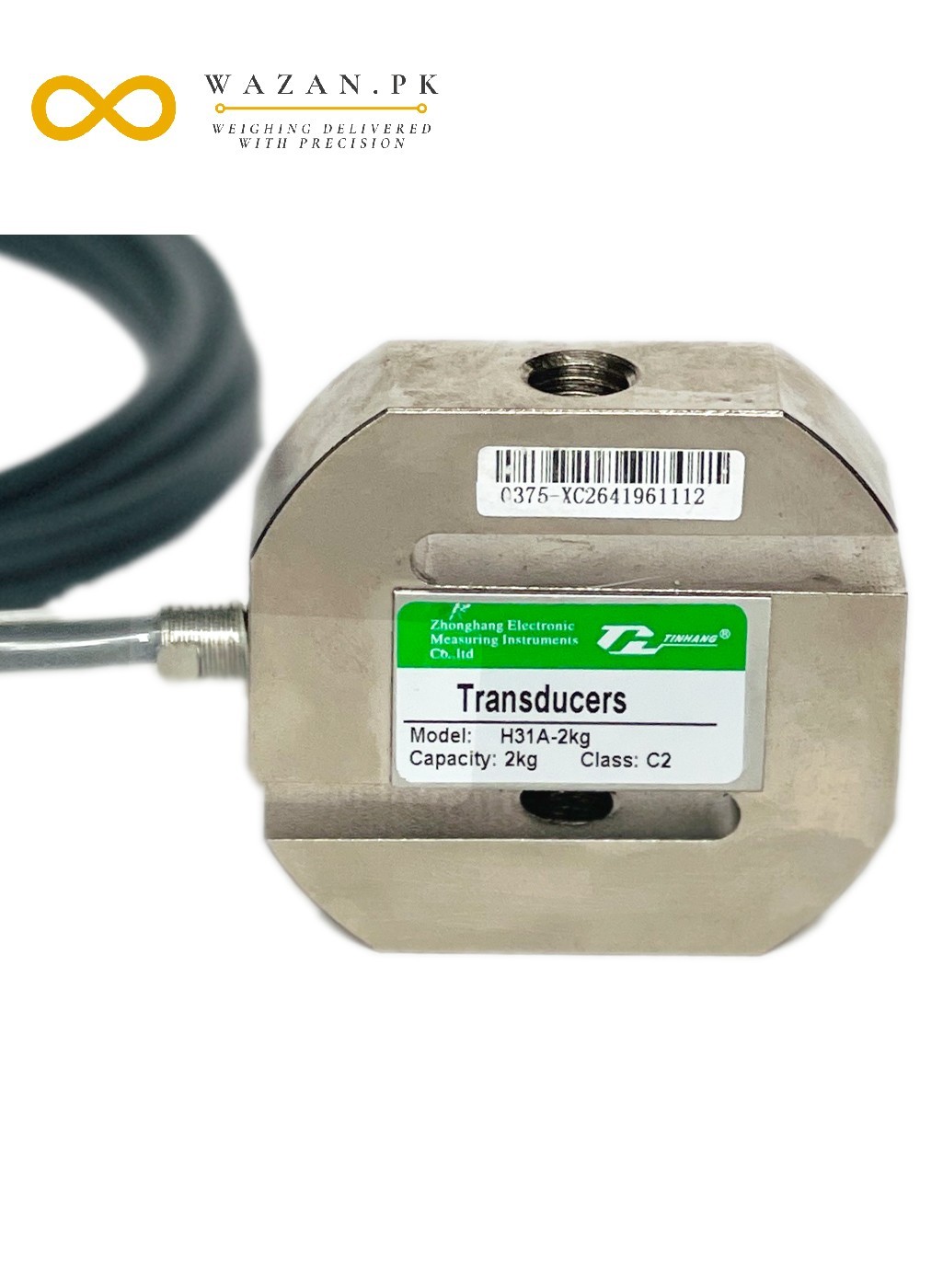

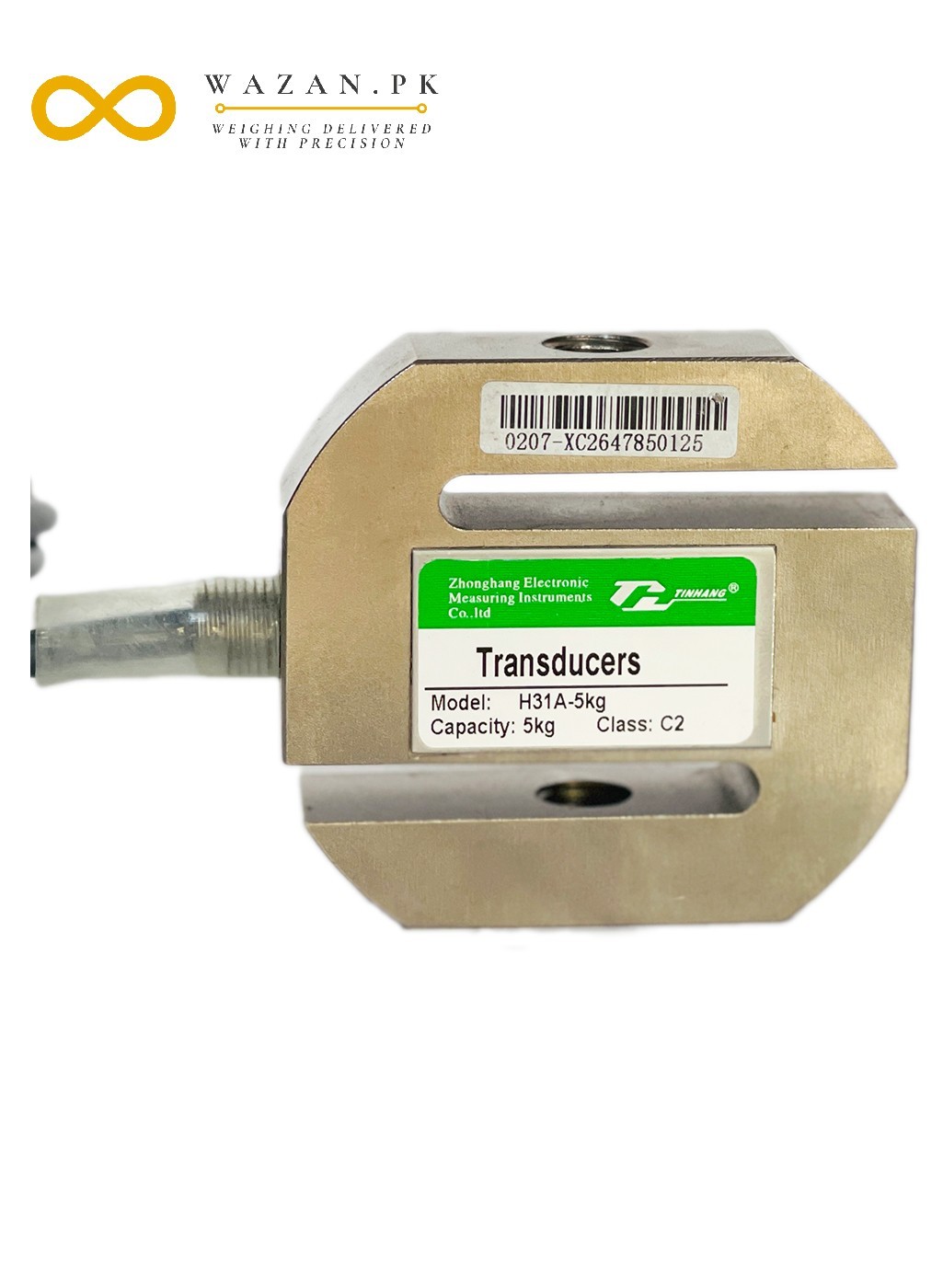

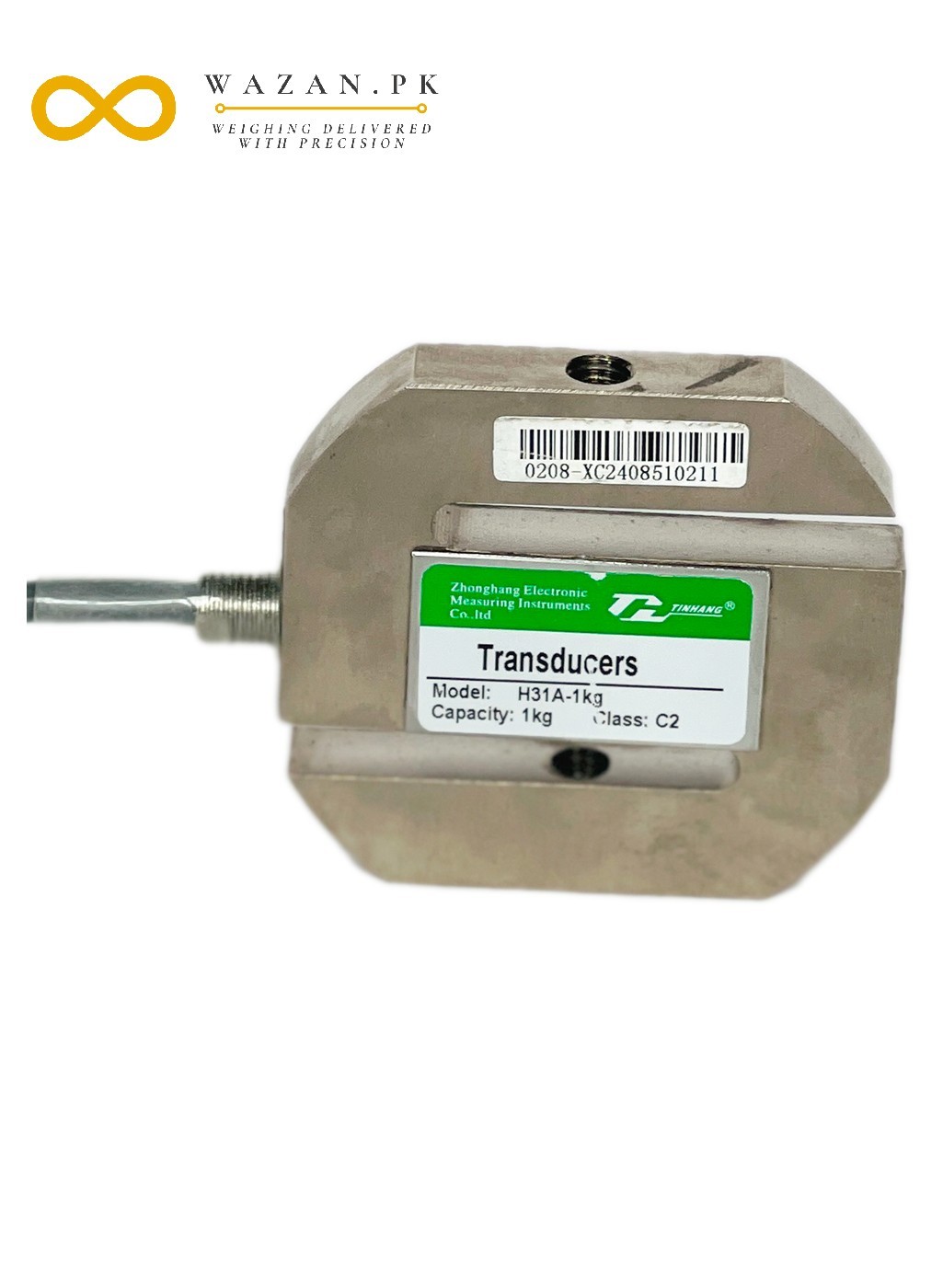

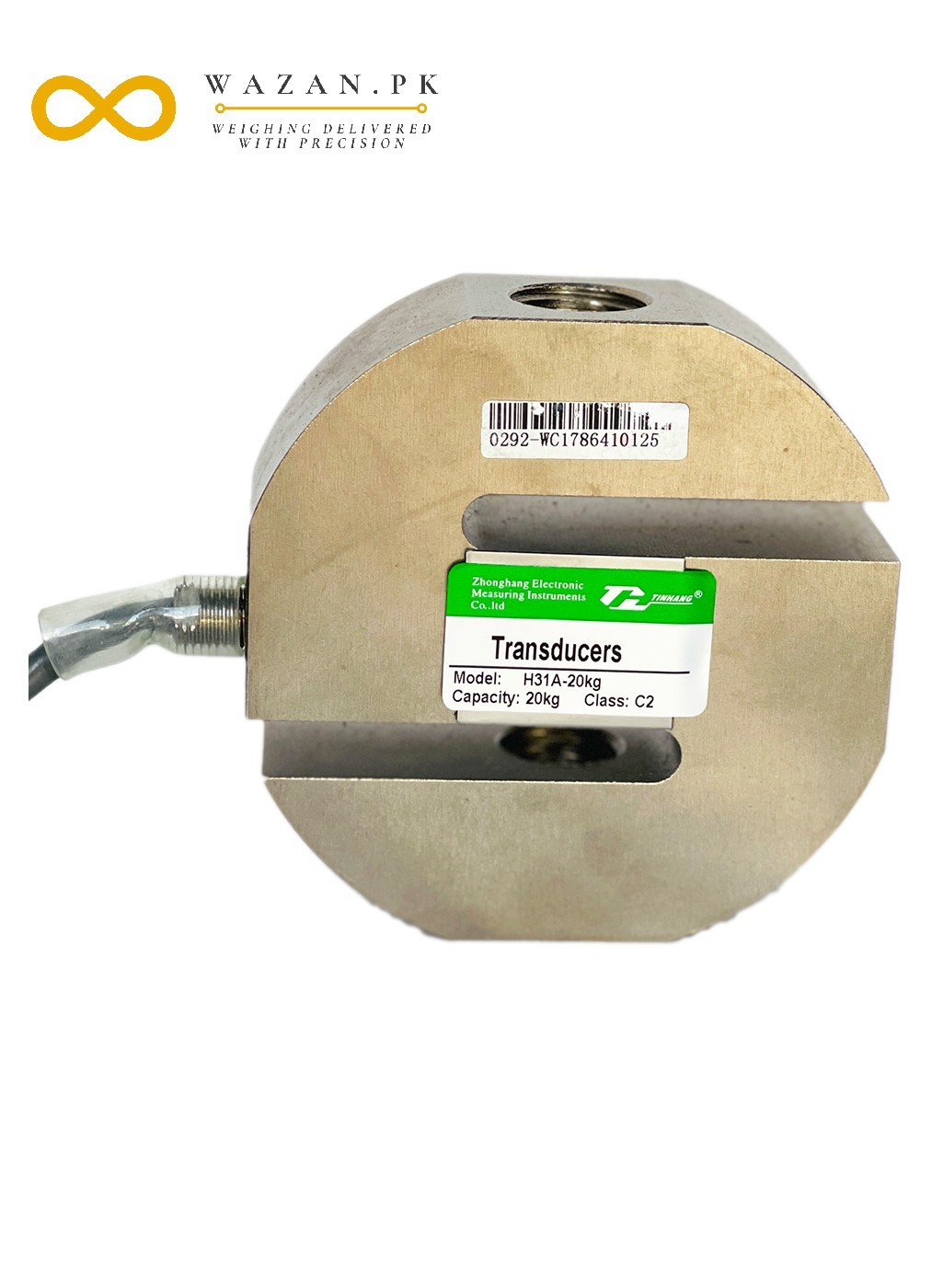

H31A Zemic (Tinhang) S-type Load Cell
Brand: Zemic (Tinhang), China
- Capacity: 0.02～10t
- High accuracy
- Alloy steel construction
- Easy installation and reliable performance
- IP67
... people are viewing this right now
Compare
H31A are available in the capacities 0.02t to 10t. Alloy steel construction, potted with adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for
multiform environments. S beam design, tension and/or compression loading possible, easy installation and convenient application. It is suitable for hanging scale, mechanical conversion scale and other electronic weighing devices. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
TECHNICAL SPECIFICATION
| Capacity | 20kg ,30kg, 50kg ,75kg ,100kg ,150kg ,200kg ,250kg ,300kg, 500kg, 700kg, 1t ,1.2t, 1.5t ,2t, 2.5t ,3t, 5t ,7.5t, 10t | |
| Combined error | (%FS) | 0.05 |
| Creep | (%FS/30min) | 0.03 |
| Temperature effect on sensitivity | (%FS/10°C) | 0.05 |
| Temperature effect on zero | (%FS/10°C) | 0.05 |
| Output sensitivity | (mv/v) | 1.5±0.004 |
| Input resistance | (Ω) | 410±30 |
| Output resistance | (Ω) | 352±2 |
| Insulation resistance | (MΩ) | ≥5000 |
| Zero balance | (%FS) | 2 |
| Temperature, compensated | (°C) | -10~+40 |
| Temperature, operating | (°C) | -20~+60 |
| Excitation recommended | (V) | 5~12(DC) |
| Excitation, max | (V) | 18(DC) |
| Safe overload | (%FS) | 150 |
| Ultimate overload | (%FS) | 200 |
| Protection class | IP 67 |
