Nickel plated alloy steel IP68 column load cell. Hermetically sealed Robust and smart design without semi-conductors Economical solution for weighbridges High accuracy Set contains HM14H1 load cell with HY-14-146 mounting asssembly, complete kit OIML test certificate no. TC8228 Revision 0 C of C no R60/2000-NL1-12.46

Add to Compare Added to Compare

Compare

HM14H1 Zemic Compression Load Cell

Brand: Zemic, China

Nickel plated alloy steel IP68 column load cell.
Hermetically sealed
Robust and smart design without semi-conductors
Economical solution for Truck Scales
High accuracy

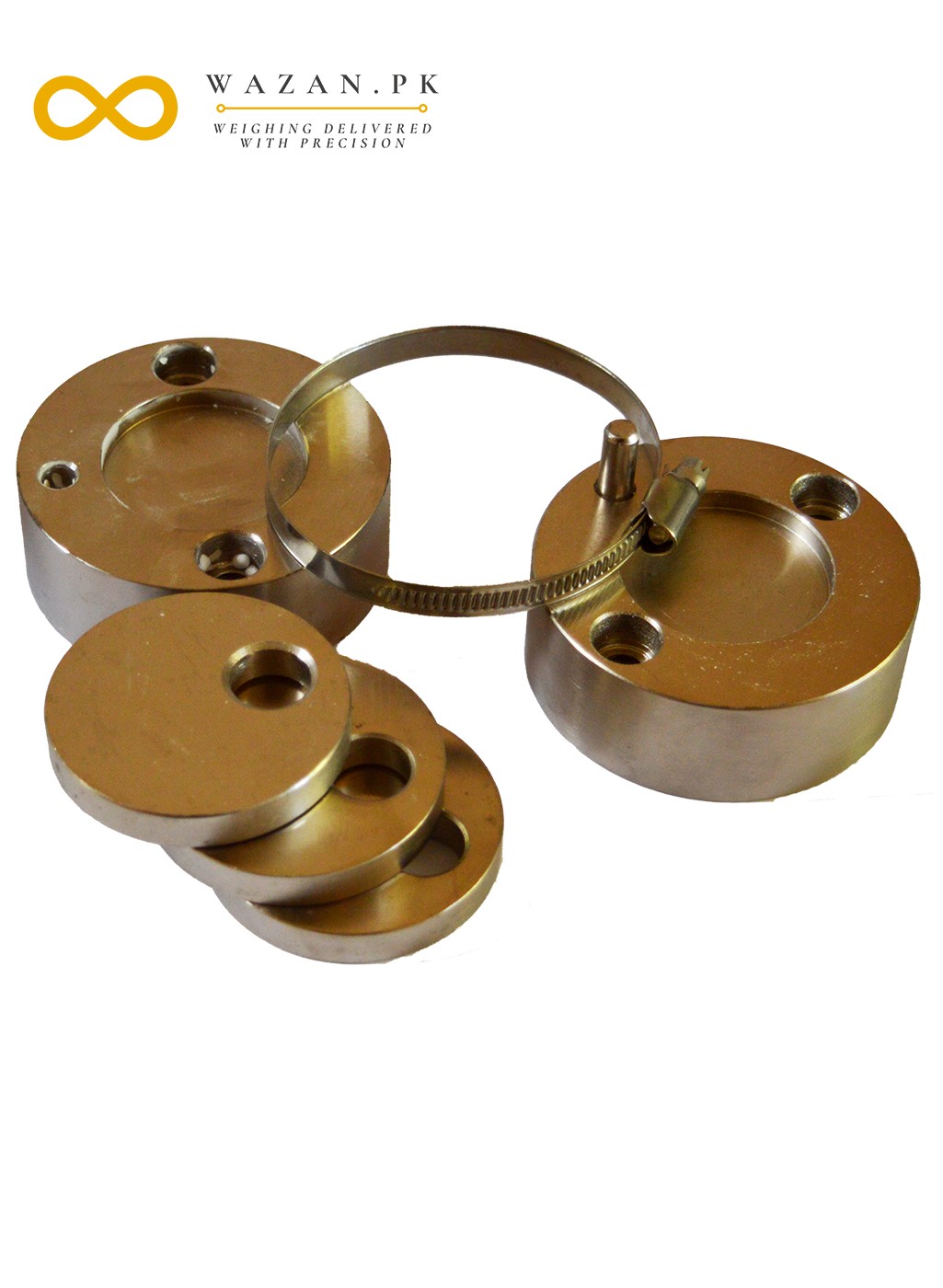

Set contains HM14H1 load cell with HY-14-146 mounting asssembly, complete kit
OIML test certificate no. TC8228 Revision 0 C of C no R60/2000-NL1-12.46

Hurry up! Sale end in:

Available Capacities

40t

Clear

... people are viewing this right now

Compare

Guaranteed Safe Checkout Trust

View Product Information

The HM14H1 Load Cell is nickel plated alloy steel IP68 column Load cell that is hermetically sealed.
HM14H1 is popular with scale manufacturers because it is easy to install and has a mounting kit. The full scale output of these load cells is set by the manufacturer to have very little difference between them, which makes edge-balancing this type of load cell easy in multi-load cell weighing systems using a junction box.The HM14H1 load cell is made of nickel plated alloy steel and has an IP68 protection standard, which means it can be used in water.

HM14H1_Datasheet

0.00

0 reviews

5		0
4		0
3		0
2		0
1		0

Thank you! Your review has been submitted

Be the first to review “HM14H1 Zemic Compression Load Cell”

Reviews

There are no reviews yet.

TECHNICAL SPECIFICATION

Accuracy Class		OIML R60 C3
Output Sensitivity ( = FS )	mV/V	2.0 ± 0.002
^{Maximum Capacity ( E}max ⁾	t	30, 40, 50
Max. Number of Load Cell Intervals	ⁿLC	3000
Ratio of min. LC Verification Interval	^{Y = E}max ^{/ v}min	10000
Combined Error	%FS	≤± 0.02
Creep Error (30 minutes)	%FS	≤± 0.016
Temperature Effect on Zero (ZTC)	%FS/10°C	≤± 0.02
Temperature Effect on Sensitivity (STC)	%FS/10°C	≤± 0.02
Zero Balance	%FS	≤± 1.0
Safe Overload	%FS	150
Ultimate Overload	%FS	300
Excitation, Recommended Voltage	V	5 ~ 12
Excitation, Maximum Voltage	V	18
Input Resistance	Ω	700 ± 7
Output Resistance	Ω	703 ± 4
Insulation Resistance (50V)	MΩ	≥5000
Compensated Temperature	°C	-10 ~ + 40
Operating Temperature	°C	-35 ~ + 65
Storage Temperature	°C	-40 ~ + 70
Load Cell Weight	kg	~7.1
Element Material		Nickel Plated Alloy Steel
Ingress Protection (acc. to EN 60529)		IP68
