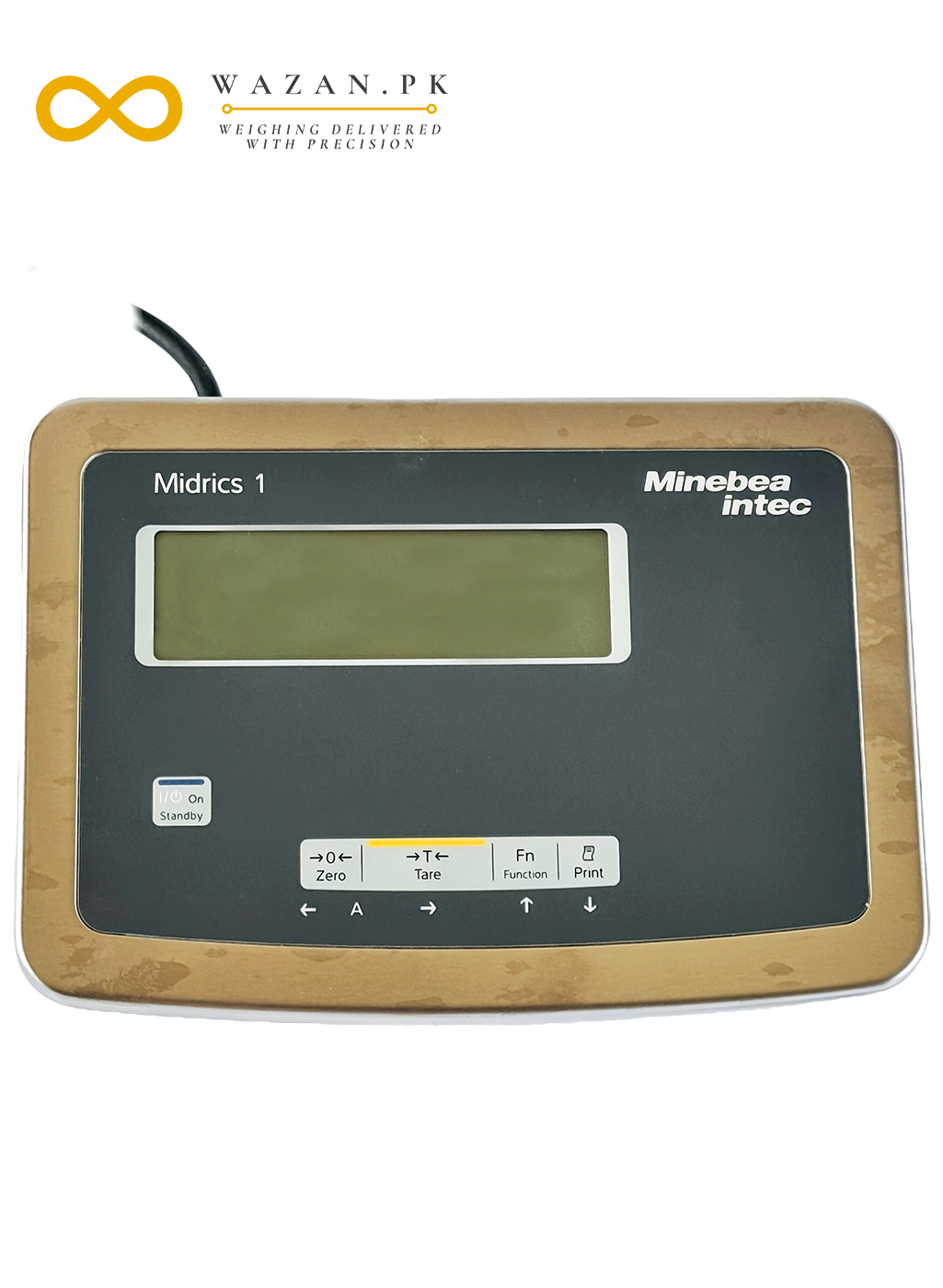

Midrics 1 Weighing Indicator
Brand: Minibea Intec, Germany
- Material: SS (Stainless Steel)
- Display: LCD Backlit Display
- Ingress Protection: IP 65
- Optional Communication interfaces
... people are viewing this right now
Compare
Material: SS (Stainless Steel)
Display: LCD Backlit Display
Ingress Protection: IP 65
Optional Communication interfaces
TECHNICAL SPECIFICATION
| Parameters | Description | ||
| Possible combinations | – 2 weight indicators – 10 load ranges from 3 kg to 3 t – 13 platform dimensions | ||
| Material | MIS… Weight indicator: Stainless steel MW.P…/MAPP… Weight indicator: Stainless steel Weighing platform: – Galvanised steel with powder coating resistant against impact, scratches and abrasion, colour: NCSS3502-B (RAL7040) Load plate: – Stainless steel AISI304 (up to 800 × 600 mm) – Powder-coated steel (from 800 × 800 mm) | MW.S…/MAPS… Weight indicator: Stainless steel Weighing platform: – Stainless steel AISI304 Load plate: – Stainless steel AISI304 | |
| Weight indicator | Provided, optionally with bolting plate or column to mount on the platform | ||
| Miscellaneous | – 4 x height-adjustable levelling feet – Levelling equipment – Overload protection | ||
| Resolution (non-verifiable) | Up to 15,000 d, depending on model | ||
| Resolution (verifiable, accuracy class III) | Up to 2 × 3,000 e (MR), depending on model | ||
| Weighing system | One or four load cells C3 | ||
| IP protection rating | MIS… – Weight indicator: IP65 MW.P…/MAPP… – Weighing platform: IP65 – Weight indicator: IP65 | MW.S…/MAPS… – Weighing platform: IP67 (load cell IP68) – Weight indicator: IP65 | |
| Data interfaces (2 slots) | Optional: – RS 232 – RS 485/422 – Analogue output 0/4...20 mA, 0-10 V, 16 bit – Digital I/O (5 inputs and 5 outputs) – Ethernet TCP/IP and Modbus TCP | ||
| Internal Alibi memory | Optional: 130,000 data sets | ||
| Comprehensive accessories | – Ramps – Foundation frames – Roller conveyors – Benches | – Cables – Printers – Wall brackets – Software – Columns | |
| Electrical supply | 100–240 VAC (-15%/+10%), 50–60 Hz, max. 17 W/23 VA Optional: – 22.8–26.7 VDC, max. 12 VA – 22.8–26.7 VAC, 50–60 Hz, max. 12 VA – Via internal battery pack | ||
| Power cable length | 3 m | ||
| Operating temperature range accuracy class III | -10 … +40°C | ||
| Operational temperature range not verified | -10 … +40°C | ||
| Storage temperature range | -10 … +40°C | ||
| Emissions | In accordance with EN 61326-1, class B (IEC 61326-1) |
| Electrical safety | In accordance with EN 61010-1 (IEC 61010-1) EN 60950 (IEC 950) |
| Immunity to interference | In accordance with EN 61326-1, industrial areas (IEC 61326-1) |
| Net weight/gross weight | MW/MAP...DC... (320 × 240 mm) 5 / 6.2 kg MW/MAP...ED... (400 × 300 mm) 8 / 9.9 kg MW/MAP...FE... (500 × 400 mm) 14.7 / 16.7 kg MW/MAP...GF... (650 × 500 mm) 28 / 42.1 kg MW/MAP...IG... (800 × 600 mm) 38 / 52.1 kg MW/MAP...II... (800 × 800 mm) 51 / 66 kg MW/MAP...LI... (1,000 × 800 mm) 60 / 75 kg MW/MAP...LL... (1,000 × 1,000 mm) 72 / 96 kg MW/MAP...NL... (1,250 × 1,000 mm) 88 / 112 kg MW/MAP...NN... (1,250 × 1,250 mm) 120 / 146 kg MW/MAP...RN... (1,500 × 1,250 mm) 137 / 174 kg MW/MAP...RR... (1,500 × 1,500 mm) 160 / 198 kg MW/MAP...WR... (2,000 × 1,500 mm) 217 / 261 kg |
| General technical data for weight indicators Midrics® | |
| Parameters | Description |
| Load cell connection | Supply voltage: 8.4 V Sensor technology available: 4 or 6 wire technology |
| Bridge impedance | 83 ohm up to 2,000 ohm |
| Measuring signal hub | 0 mV to 29.4 mV |
| Measurement signal / calibration value | min. 0.672 µV/e |
| Sensitivity | Max. 4 M divisions (internal) |
| Net weight | (Approx.) 2.3 kg |
