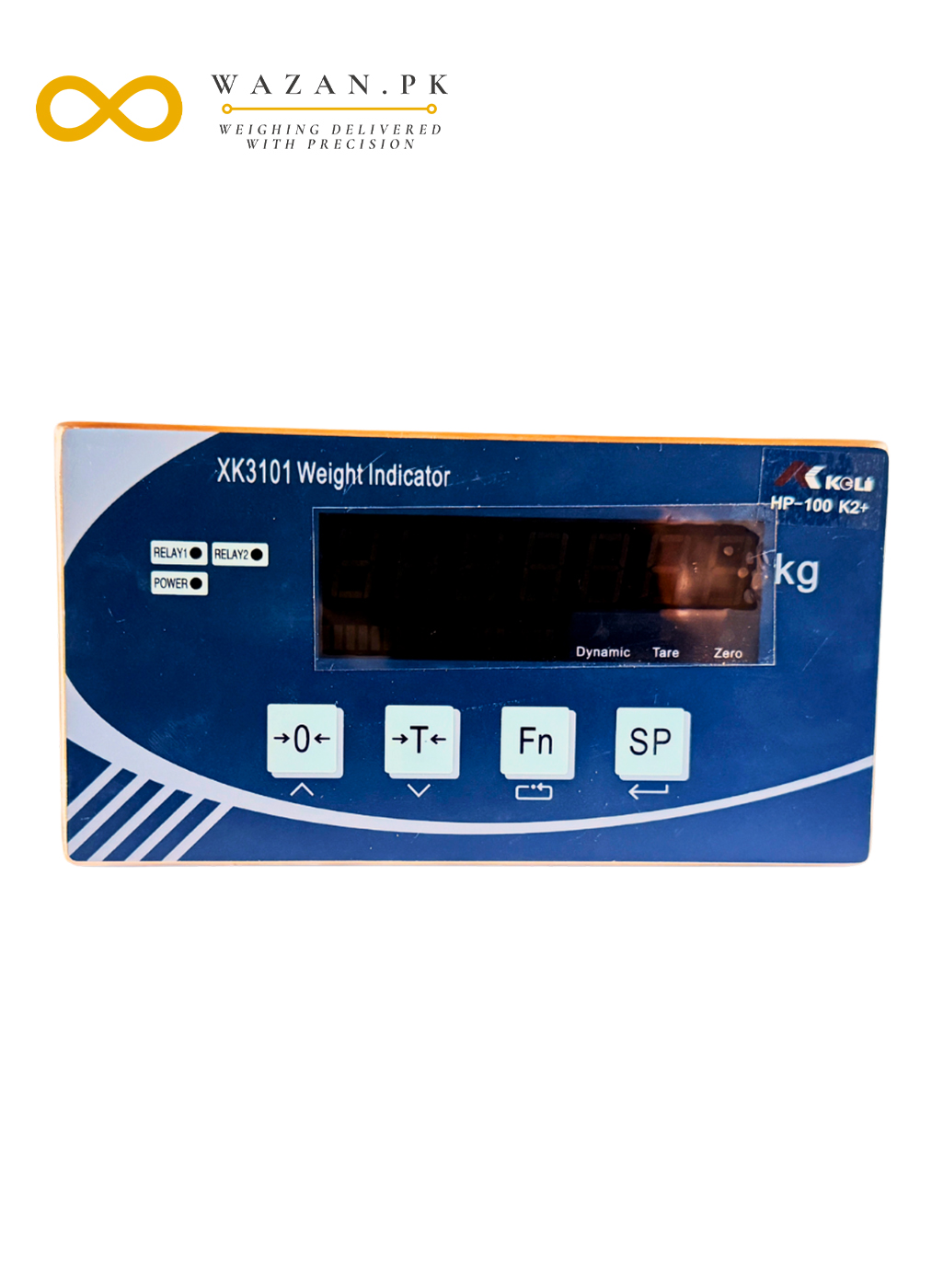

XK3101 Weighing Controller
Brand:
Keli, China
- Material: Aluminium housing
- LED Display
- Independent Scoreboard Port
- Analog Signal Output
... people are viewing this right now
Compare
Material: Aluminium housing
LED Display
Independent Scoreboard Port
Analog Signal Output
TECHNICAL SPECIFICATION
- Accuracy class: III, n = 3000
- A/D conversion mode: Highly accurate A/D, Σ- Δ 24 bit
- Division: 1, 2, 5, 10, 20, 50 (options)
- Input sensitivity: about 1.5uV/e
- Deviation distribution coefficient: pi=0.5
- Load cell excitation power: DC 5V, 85 mA
- Load cell connection quantity: Maximum 6 pieces 350Ω of analog load cell
- Input range: -20mV~20mV
- Display mode: 7-bit LED, symbol height 0.56 inch 20 segment basic display
- Serial communication portal: RS- 232 or RS- 485, baud rate: 1200 bit per second ~19200 bit per second
- Communication protocol: Channel module, constant transmission, XK3101 command mode
- Relay mode: High and low limit; specified output value, closed
- Analog output: current: 0Ма~20 mA; current: 4Ма~20 mA; voltage: 0V ~5 V; voltage: 0V ~10 V
- Dimension (height х width х length): 87 х 172 х105 mm
- Mounting hole (height х width): 76 х 150 mm
- Power supply: AC 220 V; Frequency 50/60Hz, maximum energy consumption 6W
